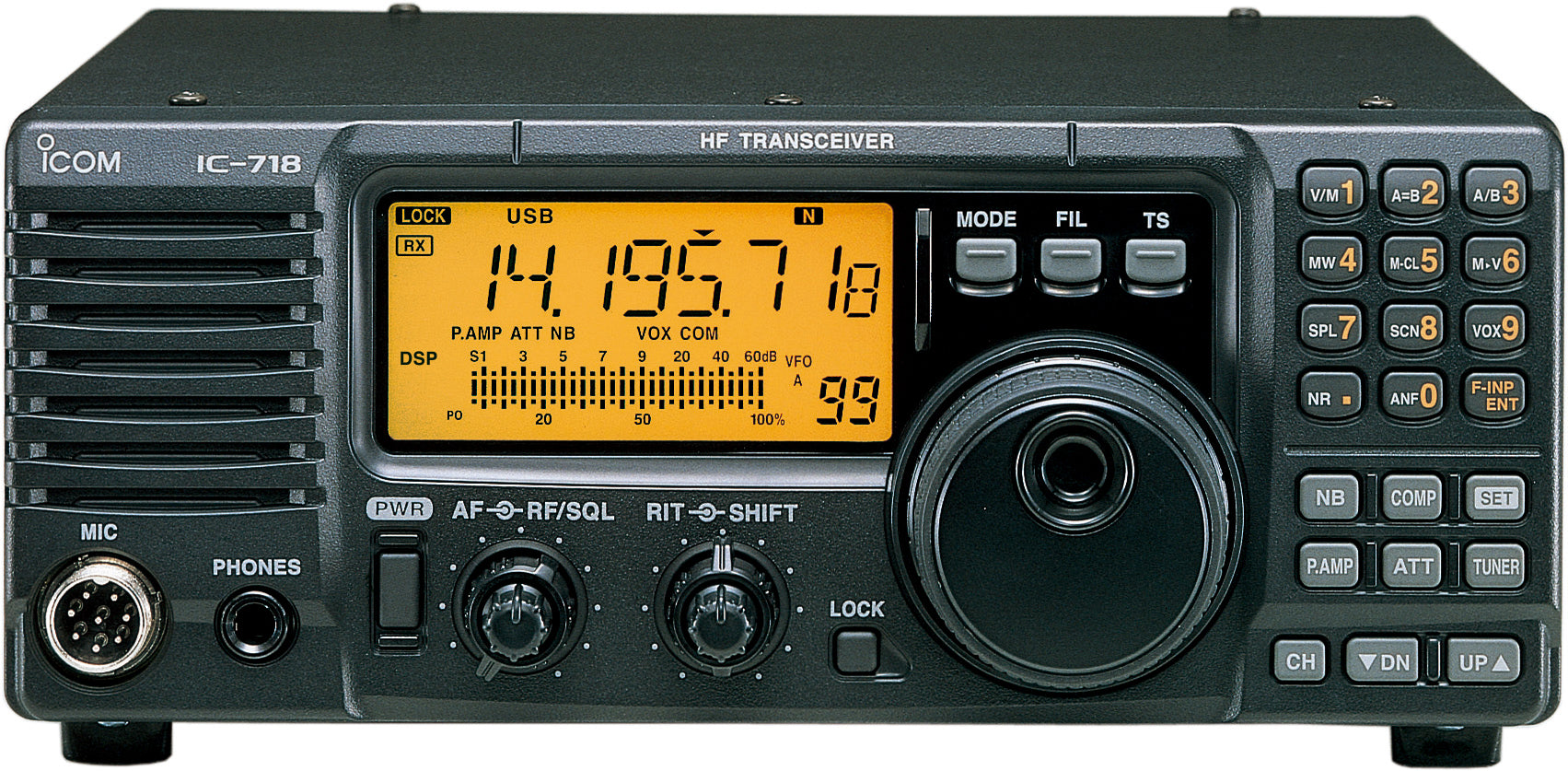

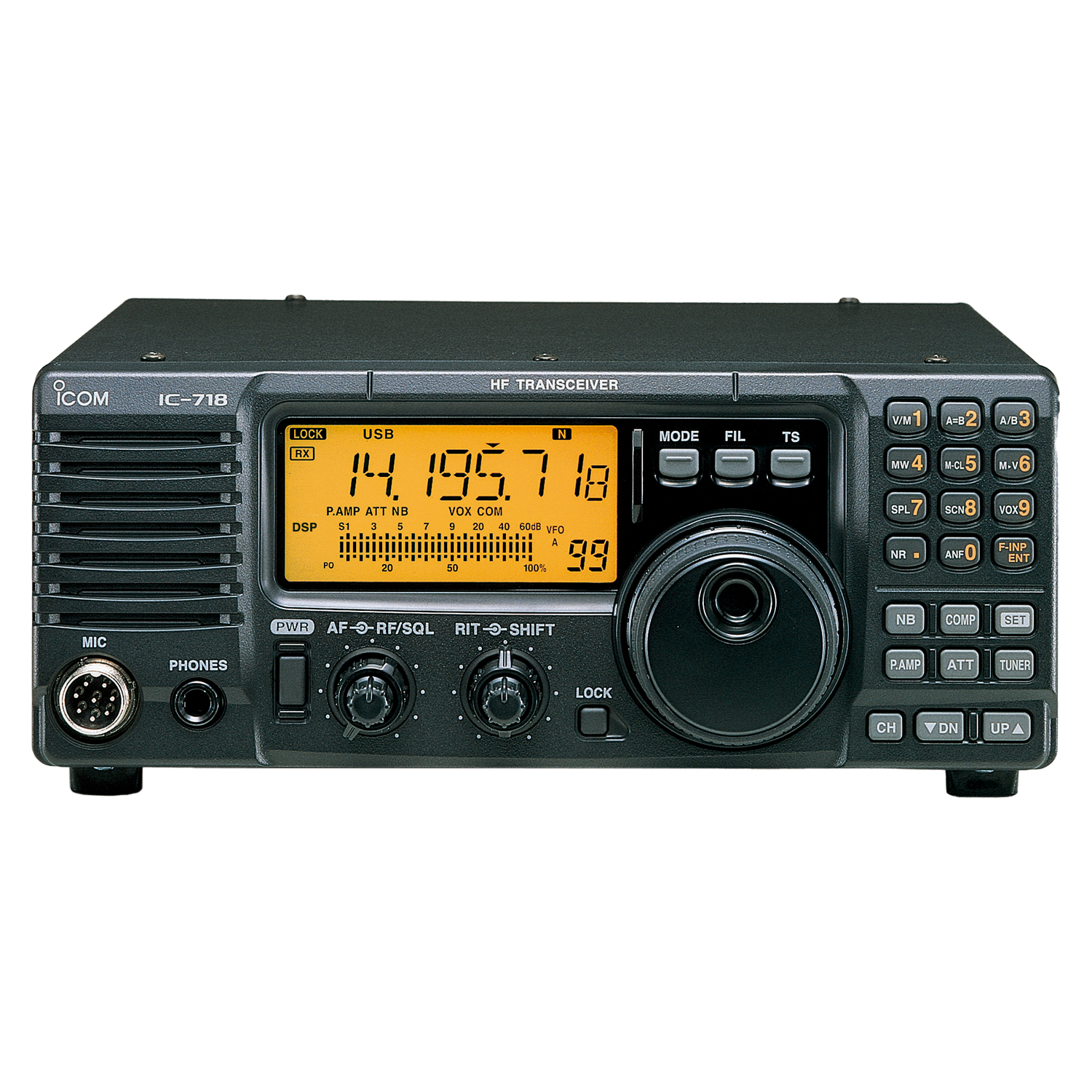

IC-718
Features
| Front Mounted Speaker | The IC-718 has a speaker mounted on the front panel. With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation. |
| Superior Basic Performance | The IC-718 provides 0.03–29.999999 MHz general coverage receive capability. A 4-element system is employed for the 1st receive mixer, providing superior receive IMD performance, especially from in-band nearby interfering signals. |
| Noise Reduction Function | The Noise Reduction function pulls desired AF signals from noise, providing clean audio in SSB and AM operation. |
| Automatic Notch Filter | The Automatic Notch Filter function minimizes beat signals and heterodynes while preserving the received signal. |
| IF Shift Function | The IF Shift function electronically shifts the center frequency of the IF passband to reduce adjacent interference. |
| Microphone Compressor | The low distortion microphone compressor increases average audio output level, improving talk power during long distance communication. |
| RF Gain Control | The RF gain control adjusts receiver gain and ignores signals weaker than the preset level for comfortable standby and scanning operation. |
| Ample CW Features | Built-in electronic keyer with adjustable dot/dash ratio, CW pitch, key speed, and full break-in capability. |
| Easy VOX Operation | The VOX function provides hands-free operation by detecting audio signals from the microphone. |
| Five Selectable IF Filter Widths | The FPGA digital filtering system provides selectable IF filter widths to suit different operating styles. |
| Digital S/RF Meter | The multifunction digital meter indicates signal strength during receiving and transmit output power, ALC level, or VSWR ratio during transmission. |
| Simple Operation | The IC-718 is designed with a minimum number of buttons and knobs for easy operation. Direct frequency entry and memory channel selection are available through the front panel keypad. |
| Optional Automatic Antenna Tuner | Compatible with the optional AH-730 automatic antenna tuner for fast antenna matching. |
| Other Features |
• USB, LSB, CW, RTTY (FSK) and AM modes built-in • Adjustable noise blanker • RF attenuator and pre-amplifier • Various scanning functions • 101 memory channels • Hand microphone supplied |
General
| Frequency Coverage |
Receive: 0.030–29.999999 MHz Transmit: Amateur bands only |
| Mode | USB, LSB, CW, RTTY (FSK), AM |
| Number of Memory Channels |
101 channels (99 regular channels + 2 scan edges) |
| Frequency Stability | Less than ±10 ppm |
| Power Supply Requirement | 13.8 V DC ±15% |
| Current Drain |
Transmit: 20 A Receive standby: 1.3 A Receive max audio: 2.0 A |
| Operating Temperature Range | –10°C to +60°C |
| Antenna Impedance | 50 Ω |
| Dimensions (W × H × D) |
241 × 95 × 239 mm 9.5 × 3.7 × 9.4 in |
| Weight (Approx.) |
3.8 kg 8.4 lb |
Transmitter
| Output Power |
SSB, CW, RTTY: 100 W AM: 40 W |
| Spurious Emissions | Less than –50 dB |
| Carrier Suppression | More than 40 dB |
| Unwanted Sideband Suppression | More than 50 dB |
| Microphone Impedance | 600 Ω |
Receiver
| Sensitivity |
SSB, CW, RTTY: 0.15 μV (10 dB S/N) 1.8–29.999999 MHz AM: 13 μV (10 dB S/N) 0.5–1.8 MHz 2 μV (10 dB S/N) 1.8–29.999999 MHz |
| Selectivity |
SSB, CW, RTTY: More than 2.4 kHz / –6 dB Less than 4.8 kHz / –60 dB AM: More than 6.0 kHz / –6 dB Less than 20 kHz / –60 dB |
| Spurious and Image Rejection Ratio | More than 70 dB |
| Audio Output Power |
2.0 W typical (at 10% distortion with 8 Ω load) |
| Audio Output Impedance | 8 Ω |
Supplied Accessories
|
• HM-36 Hand Microphone • DC Power Cable • Spare Fuse • Key Plug |
