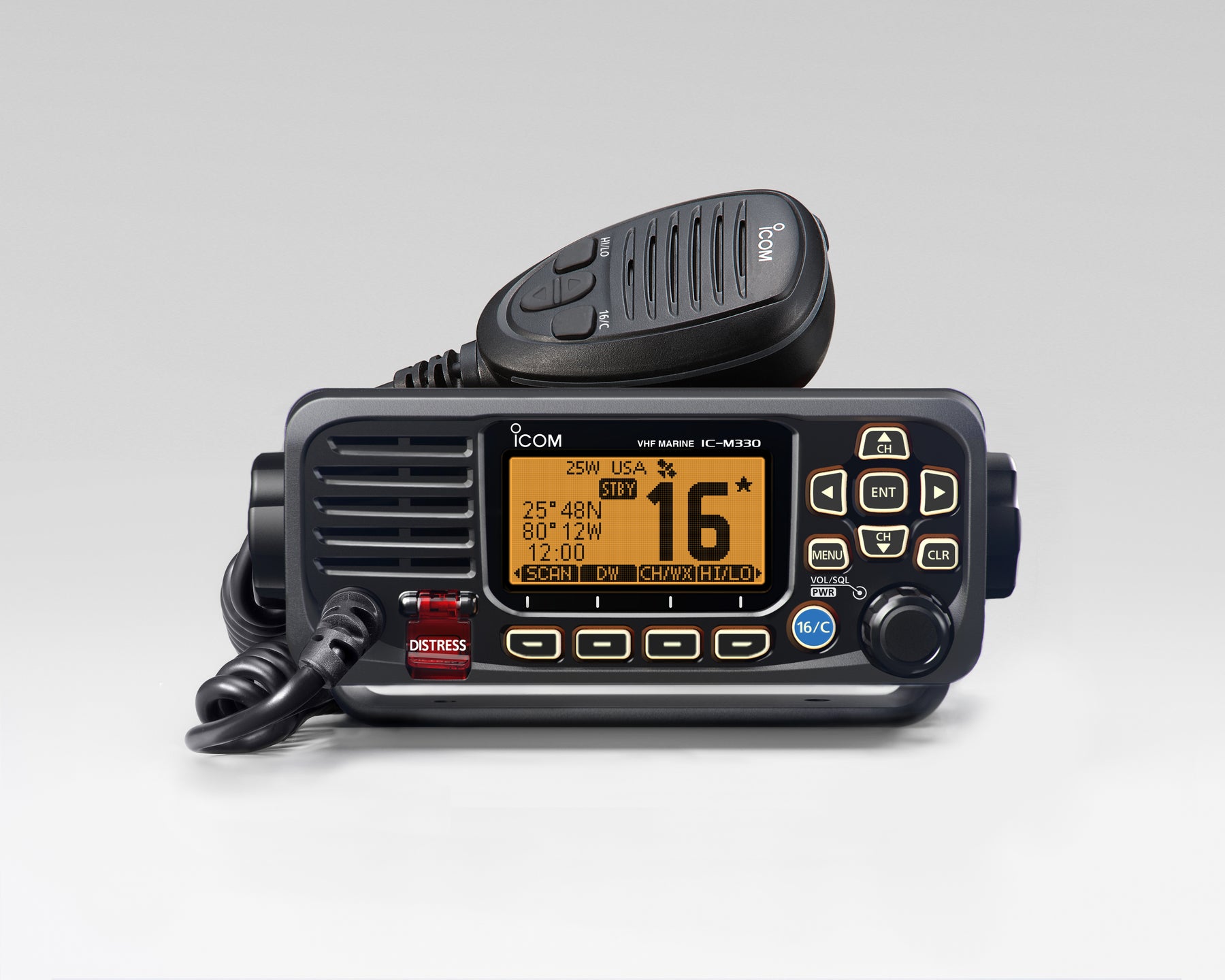

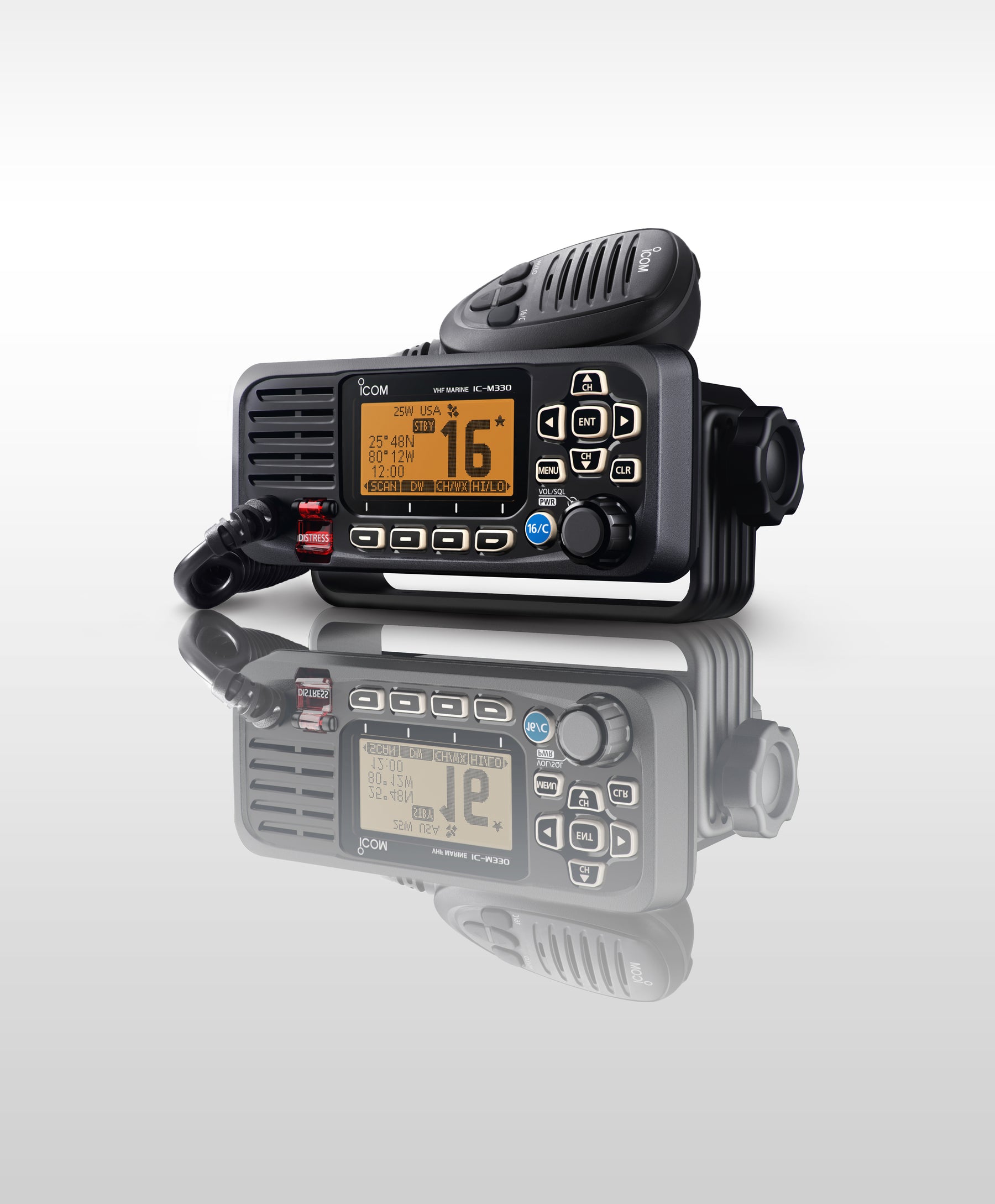

IC-M330
Features
| Ultra Compact Body, Flexible Installation | The IC-M330 features a compact body measuring 156.5 (W) × 66.5 (H) × 88.2 (D) mm, making it ideal for installation in limited spaces such as a cockpit. |
| Intuitive User Interface | The combination of directional keypad and soft keys provides simple and smooth operation. Frequently used functions are assigned to soft keys for quick one-push access. |
| New Speaker Delivers Dynamic, Clear Audio | A newly designed speaker delivers distortion-free clear audio even at full volume, providing dynamic and clear sound over a wide bass and treble range. |
| Class Leading Receiver Performance | The IC-M330 receiver provides reliable communication in RF busy environments such as marinas with excellent selectivity and intermodulation performance. |
| Built-in Class D DSC | The radio continuously monitors CH 70 even while receiving another channel. DSC functions include distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls. |
| IPX7 Waterproof Construction | Waterproof protection equivalent to IPX7 (1 m depth of water for 30 minutes). |
| AquaQuake™ Water Draining Function | The AquaQuake™ function prevents audio degradation caused by a water-logged speaker by removing water from the speaker grill. |
| MA-500TR Class B AIS Transponder Compatible | Compatible with the MA-500TR Class B AIS transponder for integrated marine communication systems. |
| Tag Scan and Favorite Channel Functions | Allows convenient channel management with tag scanning and favorite channel functions. |
| Dual/Tri-watch Function | Allows monitoring of CH16 and/or call channels while receiving other communications. |
| Priority Scan Function | Automatically monitors priority channels while scanning for active communications. |
| Display and Keypad Backlighting | Provides clear operation in low-light conditions with display and keypad backlighting. |
| External Speaker Connection | Supports connection to an external speaker for additional audio output options. |
| Supplied Hand Microphone | Supplied HM-235B/W hand microphone includes channel up/down keys and a CH16/Call channel key. |
General
| Frequency Range |
TX: 156.025–157.425 MHz RX: 156.050–163.275 MHz |
| Usable Channels | INT, USA, CAN, WX channels |
| Type of Emission | 16K0G3E (FM), 16K0G2B (DSC) |
| Power Supply Requirement | 13.8 V DC nominal (11.7–15.9 V DC) |
| Current Drain |
TX 25 W output: 5.5 A RX Max audio: 1.5 A |
| Operating Temperature Range |
–20°C to +60°C –4°F to +140°F |
| Antenna Impedance | 50 Ω |
|
Dimensions (W × H × D)
(Projections not included) |
156.5 × 66.5 × 88.2 mm 6.2 × 2.6 × 3.5 inch |
| Weight (Approximately) |
730 g 1.6 lb (including microphone) |
Transmitter
| Output Power | 25 W / 1 W |
| Max. Frequency Deviation | ±5 kHz |
| Frequency Stability | ±5 ppm |
| Spurious Emissions | Less than –60 dBc |
| Adjacent Channel Power | More than 70 dB |
Receiver
| Sensitivity | 0.25 μV typical (at 12 dB SINAD) |
| Adjacent Channel Selectivity | More than 70 dB |
| Spurious Response | More than 70 dB |
| Intermodulation | More than 70 dB |
| Audio Output Power |
4.5 W typical (at 10% distortion with 4 Ω load) |
Applicable IP Rating
| Waterproof Rating | IPX7 Waterproof protection |
Supplied Accessories
|
• HM-235B/W Hand Microphone • DC Power Cable • Mounting Bracket Kit |
